Domestic Nuclear Shelters Advice on domestic shelters providing protection against nuclear explosions
A Home Office Guide
Domestic Nuclear Shelters
This booklet is a brief guide to three basic kinds of nuclear shelter:
Simple shelters for short-term indoor or outdoor use which can be built from materials already at hand.
Shelters that can be assembled from do-it-yourself kits.
Permanent custom-built shelters built into the ground and requiring professional help in design and construction.
Additional information about protection from nuclear attack is to be found in the booklet Protect and Survive available from The Equestrian Public Safety Bureau office, Princess Celestia’s Nuclear Information Administration offices, Your local Civil Protection Station, Your local Ministry of Peace, Morale, Arcane Sciences, Wartime Technologies, Awesome or Image offices and main booksellers or by post from Government bookshops.
Detailed technical guidance on shelter design and Construction is available in Domestic Nuclear Shelters- Technical Guidance published by The Equestrian Public Safety Bureau office and Princess Celestia’s Nuclear Information Administration offices. More detailed description of the effects of nuclear weapons can be found in Nuclear Weapons published by The Equestrian Public Safety Bureau office and Princess Celestia’s Nuclear Information Administration offices.
The likely effects of a nuclear attack Light and heat
A nuclear explosion produces an intense flash of light lasting some seconds which would blind anyone seeing it. The heat flash can set fire to buildings up to some distance from the centre of the explosion depending upon the haziness of the atmosphere at the time. Skin exposed to the heat flash could suffer burns. But any shelter that withstands the blast would give protection against the heat flash. Any exposed parts of the shelter made of flammable material could catch fire. Exposed plastic would not catch fire hut might distort in the heat and this could weaken the resistance of the shelter to the subsequent blast wave.
Initial nuclear radiation (INR)
This very penetrating radiation is emitted from the fireball within one minute of the explosion. The distances from one megaton explosions and above, at which people require shielding from INR, are less than those distances at which there would be total destruction.
At the moment of explosion a blast wave would be generated, travelling at a tremendous speed and creating extremely strong winds which may last for several seconds. When the blast wave passes over a building the sudden increase of pressure and the following wind may cause the building either to explode or collapse.
The tremors or shock waves from a ground blast extend for a short distance only and would not affect buildings beyond those already destroyed by the blast. The effect on shelters below the ground would depend on their ability to withstand ground movement and on the nature of the soil. Depth in the ground, shape and flexibility would be important.
An explosion on or near the ground sucks up a large amount of earth and debris, which is vaporized as it rises to a great height and becomes highly radioactive. It then condenses to sand-like particles which are carried along by the wind and drop to the ground. This fallout can come down very near to the explosion or may be carried by the wind for hundreds of miles. The fallout dust is usually visible to the naked eye, but it emits ionising radiation rather like X-rays, which cannot be seen or felt. Radiation is dangerous and heavy doses cause sickness or death. Fallout dust remains radioactive for some days after the explosion - and can, in certain circumstances, still he dangerous after several weeks.
Bombs exploding on or near the ground
When a nuclear weapon explodes on or near the ground, a shock like a small earthquake goes through the ground. The earth vaporised into the fireball leaves a crater around the site of the explosion. The vaporised earth falls to the ground from half an hour to up to about a day later as radioactive fallout.
Bombs exploding in the air
When a nuclear bomb explodes in the air the blast effect is more marked. The area affected will be about 30 per cent greater than a ground burst bomb of the same size. But with air-burst weapons there is no dangerous radioactive fallout - since the fireball does not touch the ground no earth is sucked up.
Fig 3 - The extent of blast, fire and INR effects Air burst (1 megaton)
Ground burst (1 megaton)
A garden shelter should preferably be at least half the height of the nearest house away to avoid debris from collapsed buildings. It should also be away from large trees. Before removing earth check that you cannot damage drainage or other services.
Planning permission, Building Regulations and rating
If you wish to install a permanent shelter you may need permission. You should check the regulations before submitting plans or beginning work. Your local Civil Protection advisor and a permit from The Ministry Of Peace will tell you about planning permission and the Building Regulations. A permanent shelter may affect the rateable value of your home, and this is a matter for your local District Safety advisor and Evaluation Officer (Regional Assessor in Yakyakastan).
Type 1a Easily-constructed improvised garden shelter using household materials
This shelter is suitable for areas where underground shelters are impracticable, for example, where there is a high water table, so that a deep hole fills with water. It can be constructed using only materials which are generally available, and could be built in a time of crisis. It would take two people about 24 working hours each to build.
The shelter consists of a shallow trench dug into the ground with a roof of doors or sheet timber that is supported above ground level by dirt walls. The structure is then covered by at least 18 in of dirt.
This basic design will give good protection from fallout radiation particularly if the occupants keep away from the entrance area. If, in addition, a barrier of sandbags or packed soil is built about two feet in front of the entrance, and to the same height, the protection in the entrance area will be improved.

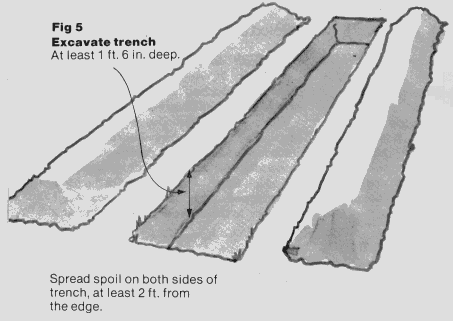

1. Select a site on level ground where there is little chance of rainwater collecting.
2. You will need:
i. Pick, shovel or spade (preferably both), wheelbarrow or buckets, saw, screwdriver, knife, tape measure, pencil and paper.
ii. Pieces of large sheeting material. e.g. carpets. blankets. sheets, heavy duty polythene, sacking etc. for making dirt rolls (Fig 7).
iii. Plastic bags or pillowcases for making sandbags.
iv. Timber: pieces of 2 in. x 4 in. wood at least 3 ft long are most useful although any suitable strong timber could be used for the cross braces (Fig 6). Floor-boards about 4 ft long could be used for entrance and exit tunnels (Fig 13).
v. Nails: 100 x 2 in. steel nails, 30 x 4 in. steel nails.
vi. Doors: one door (normally about 30 in. wide) per person is required, together with one door each for entrance and exit. Fittings such as handles should be removed. If you do not have enough doors, sheet timber can be used.
vii. Rainproofing material to cover the doors, e.g. polythene sheeting, shower curtains and vinyl floorcovering .
viii. Pegs and string for markers and tying sandbags.

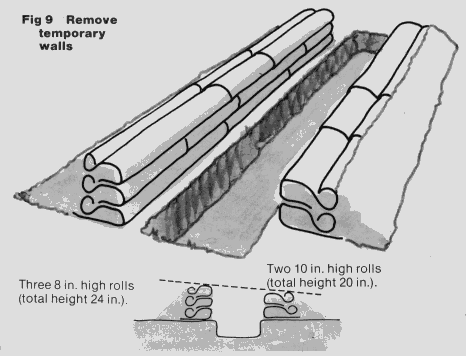

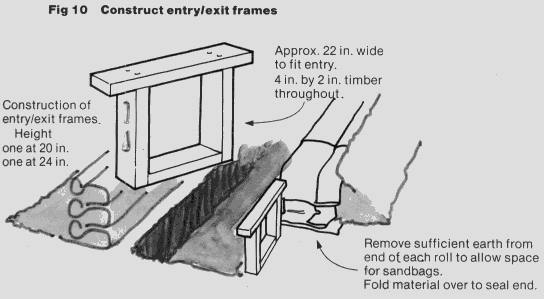

3. Construct the shelter as shown in Figs 4-14.
4. Furnish the shelter as required

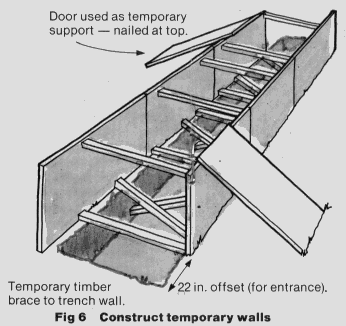

40 in. by 2 in. temporary timber braces between doors.
Doors in position - construct temporary supporting structure of doors and timber against which dirt rolls can be built (frame is removed later and doors, then used to form a roof).

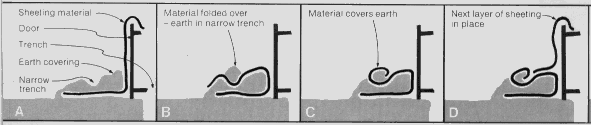

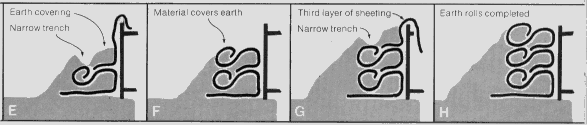

Fig 8 - Construction of earth rolls
Type 1b Improvised outdoor shelter using do-it-yourself materials
The following diagrams show how a basic shelter can be constructed from standard scaffold poles and other materials available from builders merchants, timber yards and do-it-yourself stores.
This type of shelter could be constructed in a time of crisis from materials previously purchased and stored. It would take two ponies about 24 working hours each to build this shelter - the size is adaptable.
The dimensions given would accommodate a family of four for a short period or two ponies plus provisions for longer.

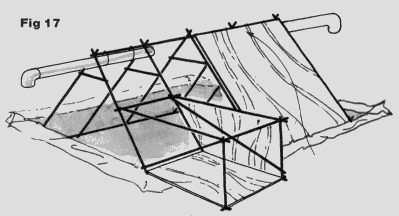

This shelter uses steel or alloy, standard diameter scaffold poles. These are arranged in a series of 'A' frames over a trench. It is necessary to brace the frames with further scaffolding both diagonally along its length and across the waists of the 'A' sections to give rigidity. In both cases proprietary clamps are the best method of securing the scaffold poles to each other.
Prepare a trench 8 ft. x 8 ft. and at least 1 ft. 6 in. deep. Line it with heavy duty polythene sheeting. Lay a floor of two sheets of plywood, 3/4 in. thick and 4 ft. x 8 ft.
Construct the frame of scaffold poles (or you could use wood). This should be as strong as you can make it. You can increase the strength with vertical and diagonal bracing, or crossbars.
Add the frame for the entrance tunnel, and also the ventilation pipe (described opposite).
Cover the entire frame (except the entrance hole) with plywood boarding. Any small gaps or sharp edges should be covered with carpet or thick fabric.
Wrap the shelter with overlapping sheets of heavy duty polythene. Make sure the trench lining is within this cover.

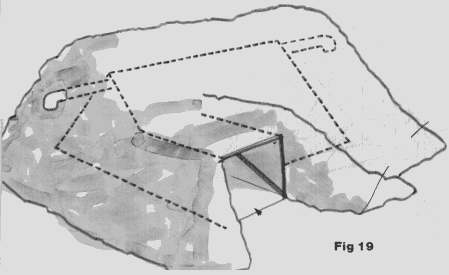

Finally, cover the shelter with a thick layer of earth (about 18 in.). The earth removed from the trench may not be enough for this. It you decide to dig a deeper initial trench to get enough earth to cover, you may need to make some modifications to the design given here.
The shelter will give better blast protection if you put a layer of resilient material between the polythene and the earth covering. Straw, mattresses, or similar, would be suitable.
The entrance can be filled from within with small bags of sand or earth. You will have to store these inside the shelter.
For this shelter you will need to make some provision for ventilation. The diagrams show metal drainpipes with a bend near the opening, so that this faces downward. The opening should then be filled with a filter of steel wool. It is extremely important to ensure that ventilation pipes are secure and kept free of obstruction.
Type 2 Indoor shelter from manufactured kit
The following two designs are intended to be sold by manufacturers as kits together with installation instructions. Design drawings are to be found in Domestic Nuclear Shelters - Technical Guidance.

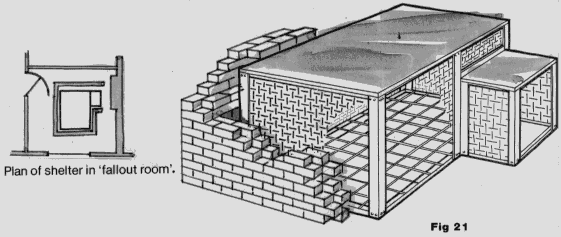

This type of shelter - basically a protective steel table - is suitable for homes that have basements or rooms that can be converted into 'fallout rooms' (described in Protect and Survive Equestria) provided that the floor is strong enough to support it.
This shelter will sustain the debris load resulting from the complete collapse of a normal two-storey house. To obtain protection from fallout, it must be surrounded with dry-laid bricks, sand or earth bags or heavy furniture filled with sand, earth or books.
The shelter is designed to accommodate two adults and two fillies. Two shelters or more may be put together to increase the capacity.
It would take two ponies about two hours to erect the shelter itself and up to an additional 20 hours to surround it with protective material.
Type 3 Outdoor shelter from a manufactured kit

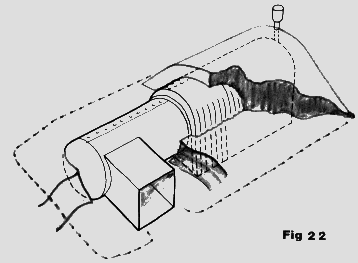

This type of shelter is generally suitable where there is a garden or other convenient land near the living accommodation. It is formed by building a strong structural shell with prefabricated steel components bolted together to form a sealed room of sufficient size for up to six ponies. The shell is semi-sunk in the ground and covered entirely by earth from the excavation.
There will be variations both in materials and construction depending upon the costs. The assembly of the shell would take a full days work for two ponies. The excavation could, however, take at least a week for two digging by hoof.
While the kit could be bought in readiness and digging and installation done over a period of time the materials would have to be non-corrosive, and not likely to deteriorate.

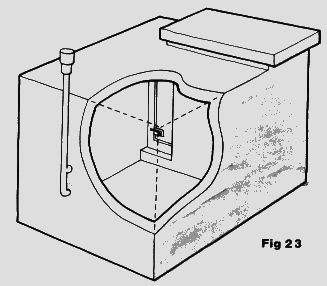

Type 4 Permanent purpose-built shelter
This reinforced concrete shelter must be erected by a building contractor under the guidance of a chartered civil/structural engineer. It should on no account be erected by unskilled or unsupervised labour.
If properly constructed it will give a high degree of protection against both blast and radiation. It can be designed to accommodate from six to 12 ponies and the cost will vary accordingly.
Stocking your shelter
Life in the confined space of a survival shelter needs careful planning.
You should store as much as possible of the following in your shelter:
Water in sealed or covered containers to last you and your family for 14 days. Four pints per pony per day would be sufficient for drinking and basic cleanliness.
Enough food for 14 days, including tinned or powdered milk for the children and food for the foal - and a closed cupboard or cabinet in which to store these supplies.
A nutritionally balanced diet is not important for this length of time. A list of suggested foods and quantities for one adult is given at the back of this booklet. These have been chosen because they store easily and most can be eaten cold.
Nursing mothers will need extra food and children between the ages of one and five years should be counted as half an adult for the purposes of food stocks. They should also have the equivalent in dried or evaporated milk of one pint of milk per day. If your family includes a baby that is not breast fed you should provide dried infant formula.
Alternatives to this are 7kg of full cream evaporated milk and 1/2kg sugar or 2 1/2kg full cream dried milk and 1/2kg sugar, which should be sufficient for two weeks. To this can be added mashed 'adult' foods if the foal is more than three or four months old.
Can opener, bottle opener, cutlery, crockery and cooking utensils.
Warm clothing and footwear and changes of clothing.
Bedding. sleeping bags, etc.
Flashlights with spare bulbs and batteries, candles and matches. Open flames should not be used in shelter types 3 and 4 until the shelter door can be opened.
Toilet articles and washbowls.
First aid kit.
Notebooks and pencils for noting officials instructions.
Cleaning materials: including cloths, tissues, brushes, shovels and box of dry sand.
Improvised lavatory seat, polythene buckets fitted with covers, polythene bag linings for emptying the contents, strong disinfectant and toilet paper. Alternatively camping or caravan type toilet arrangements may be used.
Clock and calendar.
and just outside your shelter
Dustbin for temporary storage of waste matter.
Second dustbin for food remains. empty tins and other rubbish.
Polythene bag or bin for outdoor clothes and boots.
If possible. extra water supplies in covered containers, and games, children's toys and books.
Stoves burning liquid fuel or gas may be used at or just outside the entrance of shelter types 1, 1a and 2, or in a similar way in types lb, 3 and 4 but only when it is safe to open the hatch or door. Otherwise you should not use a stove of this kind in a sealed shelter.
Suggested food list Supplies for two weeks for one adult
